CedarMax Insulated Siding

When you choose CedarMAX insulated vinyl siding you have chosen the #1 Recommended Siding* on the market. CedarMax is manufactured by integrating 'Super Polymer Formulated' vinyl siding with rigid foam insulation, which provides all the beauty, durability and sustainability of vinyl siding. What's more, you also get the added bonus of improved energy efficiency.

CedarMAX Insulated Siding is a complete thermal cladding system that is recognized as a form of “continuous insulation,” or insulation installed on the outside of your home that helps reduce energy loss. Integration of ProVia's exclusive Super Polymer Formulation with rigid foam insulation makes CedarMAX the perfect choice of exterior cladding for your home.

CedarMAX features a Cyclonic Locking System which stands strong in high winds. It has been tested to *227 mph! Windload testing is based upon ASTM 5206 testing and results are reported per ASTM 3679 section 5.11.

CedarMax Siding Profiles

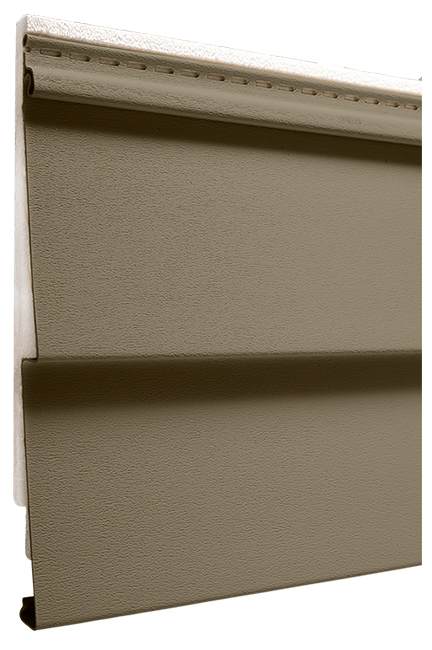

Double 6" Straight Lap

2.4 R-Value
.050" Thickness

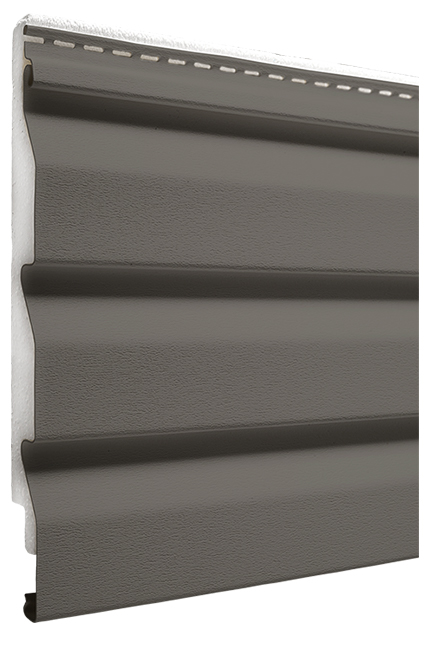

Triple 4" Dutch Lap

2.8 R-Value
.046" Thickness

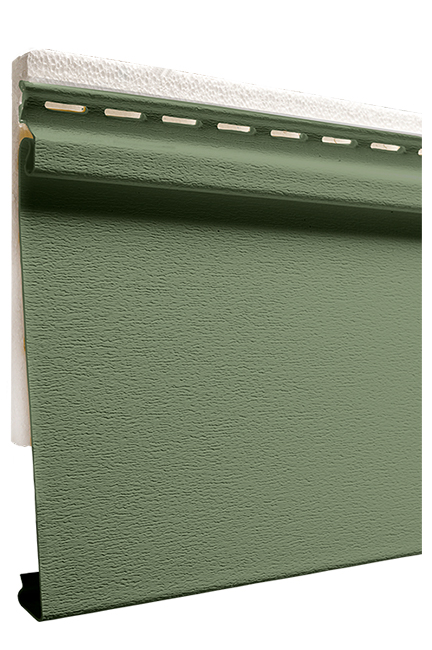

Single 7" Straight Lap

2.3 R-Value
.050" Thickness

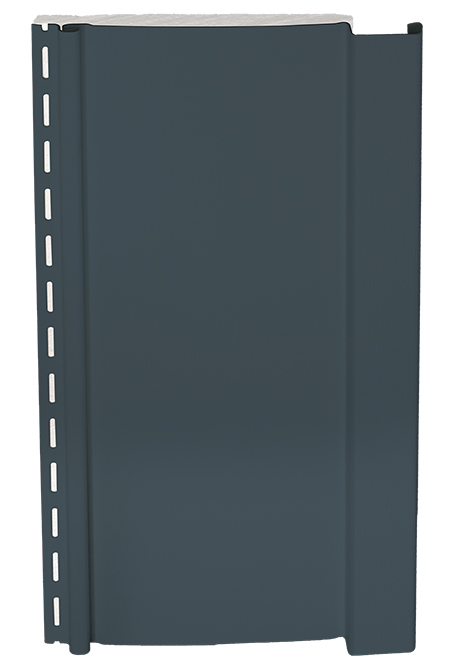

CedarMax 8" Board 'N Batten

8" Board 'N Batten

2.2 R-Value
.050" Fhickness

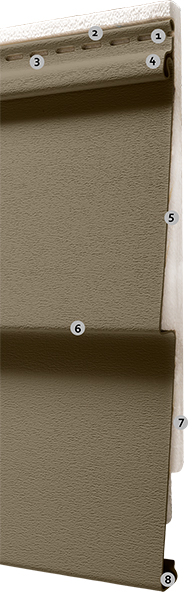

Features and Specs

1
Double-Ply Windload Nailing Hem for increased tear resistance in high winds
2
High-Tension Structural Return ensures a snug fit and less energy loss
3
Nail Depth Guide for proper installation
4
Patented Twister Lock for a structurally stronger connection to the exterior wall
5
Rigid Foam integrated for 5 times greater impact resistance
6
Deep profile for increased shadow lines
7
Intrgrated Permeability lets your house "breathe"
8
Drop Guard prevents panel from dropping too far down or out of the lock - while being installed
CedarMax Insulated Siding Features

Maximum Impact Resistance

Unlike conventional hollow siding, CedarMAX Insulated Siding gives a solid foundation of support against rain, hail or your child's fastball. The rigid foam offers 5 times greater impace resistance over hollow siding.

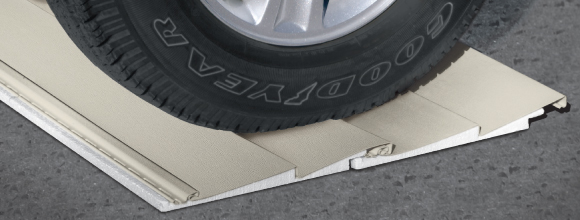

CedarMAX Insulated Siding Impact Resistance
